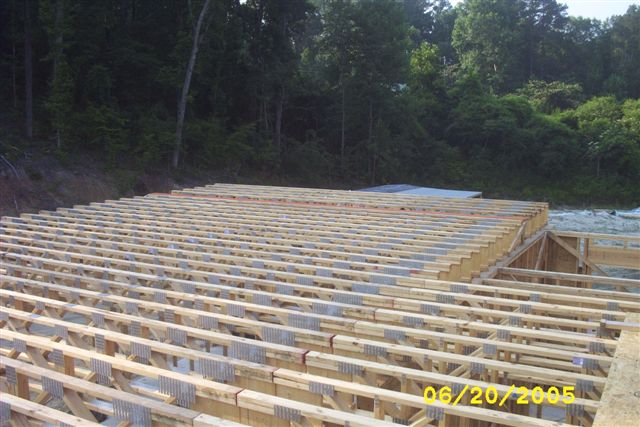

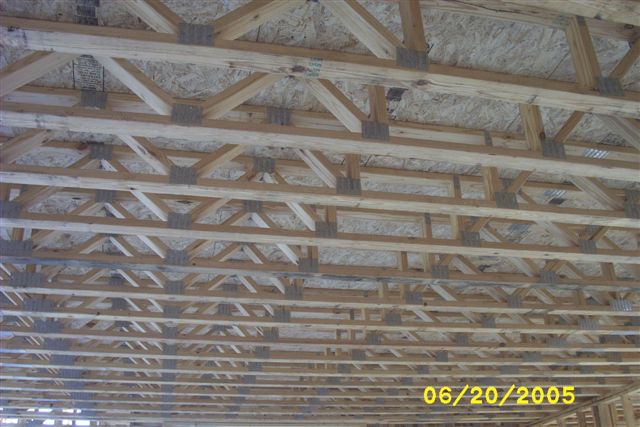

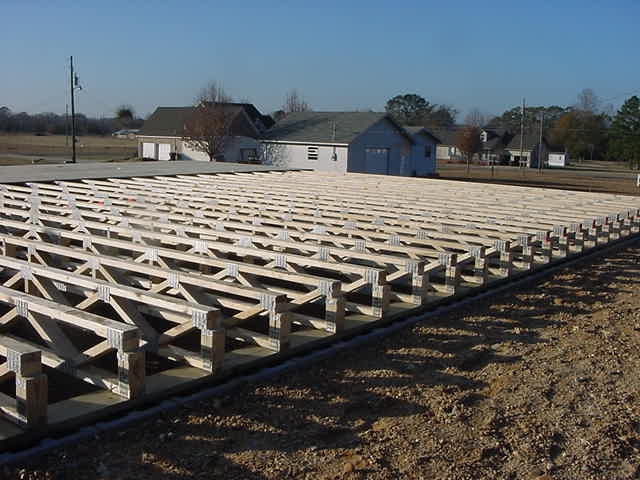

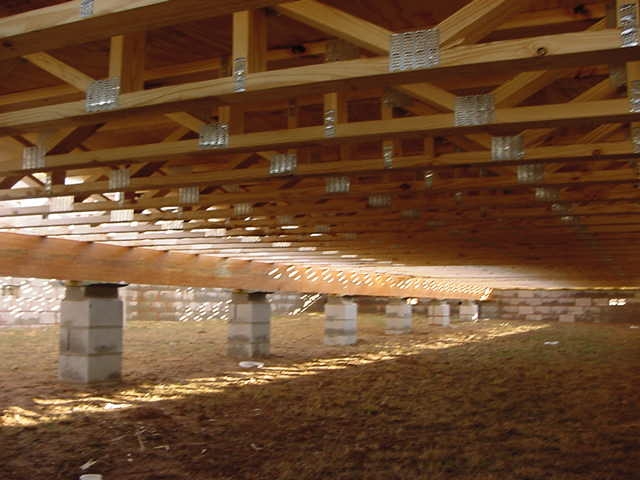

Custom Built Floor Trusses
Download the Floor Truss Span Table Information Sheets.
Spacing (O.C.) | ||||
---|---|---|---|---|
Size | Loading | 16" | 19.2" | 24" |
TrimTruss Sizes | ||||
11 1/4" Depth | 55psf L/360 | 22'0" | 21'2" | 19'7" |
55psf L/480 | 22'0" | 19'9" | 18'0" | |
16" Depth | 55psf L/360 | 28'0" | 27'4" | 25'5" |
55psf L/480 | 28'0" | 25'9" | 23'10" | |
Custom Built | ||||
14" Depth | 55psf L/360 | 26'0" | 25'6" | 23'6" |
55psf L/480 | 25'3" | 23'9" | 22'0" | |
18" Depth | 55psf L/360 | 31'0" | 30'0" | 16'6" |
55psf L/480 | 30'0" | 28'0" | 26'0" | |
20" Depth | 55psf L/360 | 31'0" | 30'0" | 26'0" |
55psf L/480 | 30'0" | 29'0" | 28'0" | |
22" Depth | 55psf L/360 | 31'11" | 31'6" | 31'2" |
55psf L/480 | 31'5" | 31'0" | 30'2" | |
24" Depth | 55psf L/360 | 33'0" | 33'4" | 31'6" |
55psf L/480 | 33'0" | 31'6" | 31'6" |
